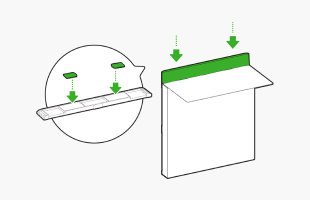

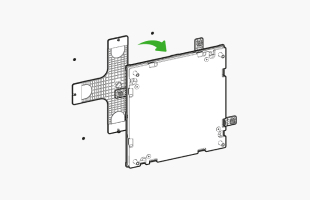

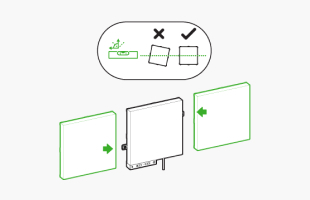

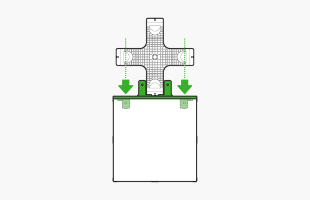

Before mounting your first panel, make sure the round end of the tape overhangs the opening in the mounting plate. This will allow you to safely remove them later from the wall.

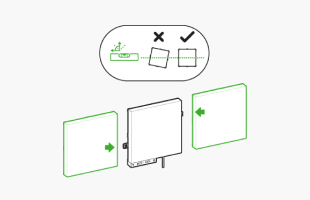

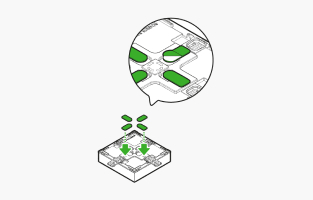

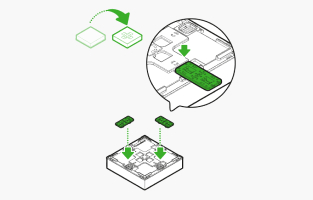

Squares have 2 linker slots per side, allowing for offset connections.

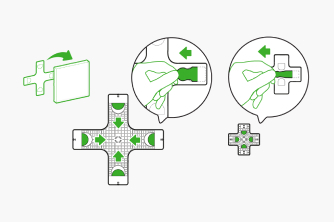

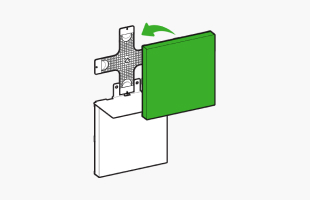

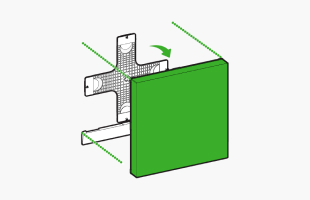

To uninstall your Blocks Panels, remove the panel, leaving the mounting plate on the wall. Pull the tape from under the tabs very slowly so the tape stretches and does not snap. The mounting plate will release from the wall once all tape has been removed.
To uninstall your Blocks Panels, remove the panel, leaving the mount plate behind. Pull the tape from under the tabs very slowly so the tape stretches and does not snap. The mounting plate will release from the wall once all tape has been removed.
Important

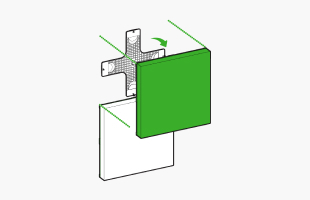

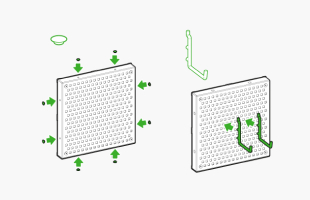

You can have multiple light pegboards in one layout, but we suggest a max grouping (cluster) of 4 for a more stable and secure installation.
A single pegboard has a weight bearing capacity of 3kg (6.6lbs).

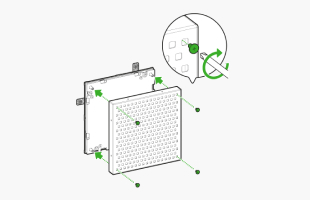

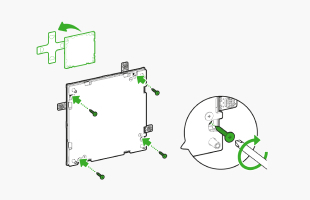

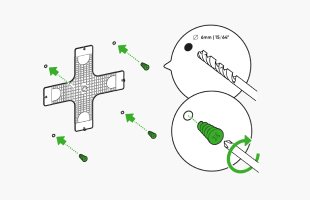

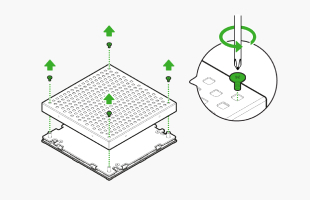

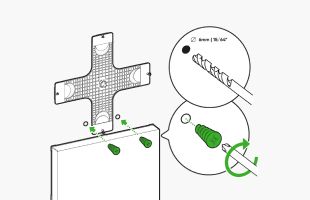

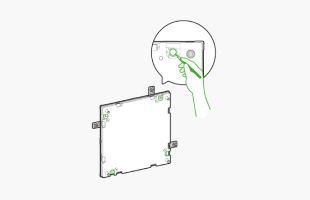

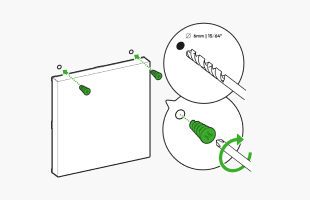

You can also reduce the number of screws on your wall by only screw mounting the outer corners of your pegboard cluster. This is only applicable for smaller clusters (max 4).

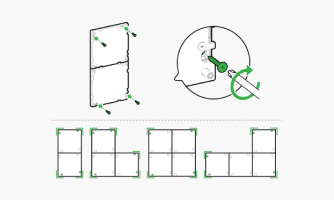

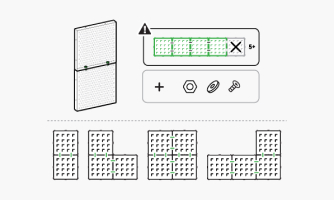

Here are some examples of pegboard clusters and the corners (marked in green) that would need to be screwed into the wall.
If you have more than 5 pegboards in your layout, we suggest spreading them out or grouping them in smaller clusters (max 4).

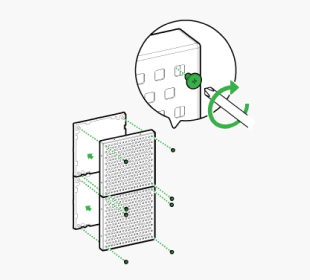

If you need to have 5 or more pegboards in a cluster, you must screw-mount all four corners of each pegboard.
Important

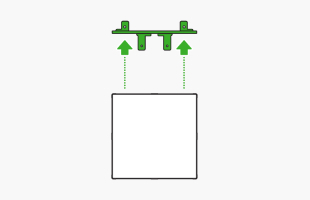

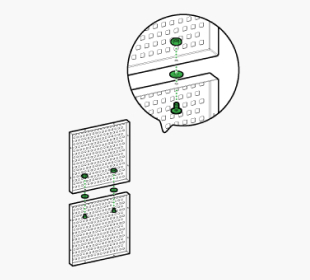

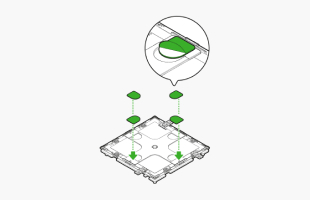

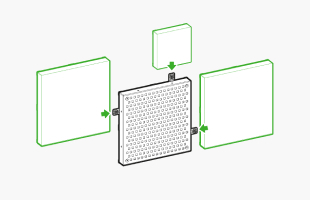

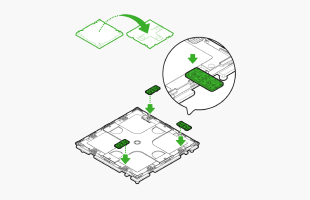

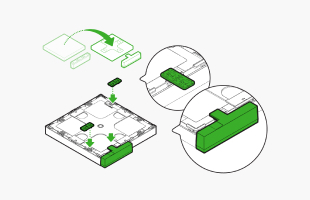

Ensure that all linkers that are needed for your layout are securely snapped into the pegboard as it will be difficult to add more later.
Skip to Step 3 if you do not have pegboard clusters in your layout.

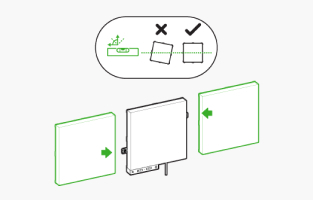

The difference between Squares and Textured Panels is just in the diffuser cover!
To set up your Textured Panels, follow the same installation steps as with Squares.
Rotate your Textured Squares to change up the orientation of the 3D design.

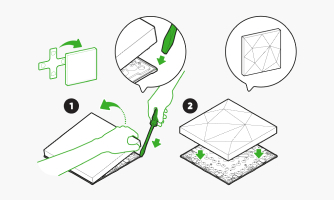

Optional: Swapping Diffusers
If desired, you can swap the diffusers between Squares and Textured Square Panels. Look for the small notch at the corner of the panel, and using a flathead screwdriver, pull the diffuser off, and replace it with the diffuser of your choice.
To uninstall your Blocks Panels, remove the panel, leaving the mounting plate on the wall. Pull the tape from under the tabs very slowly so the tape stretches and does not snap. The mounting plate will release from the wall once all tape has been removed.
Important

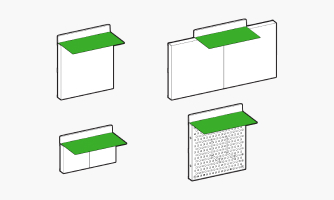

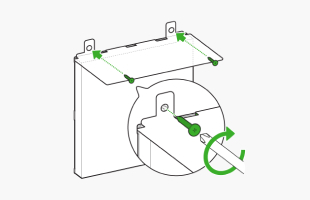

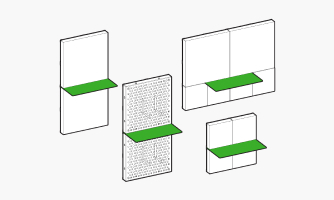

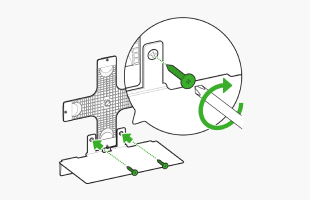

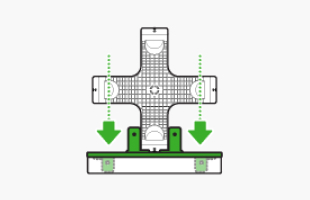

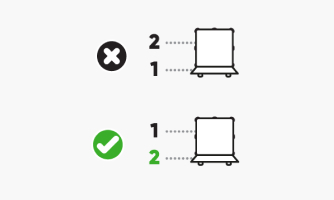

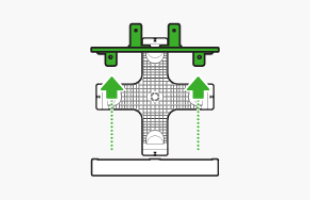

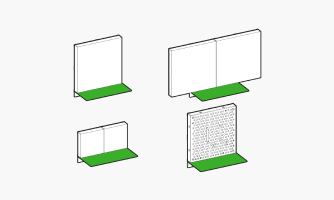

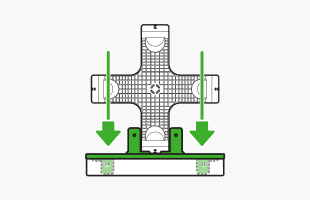

Choose the appropriate shelf installation method based on where your shelf sits in your layout relative to other Blocks panels.

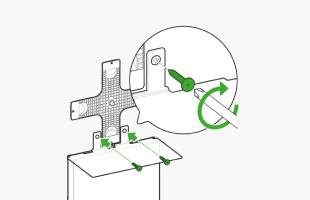

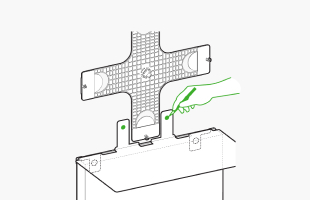

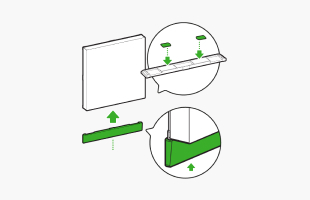

For shelf installations at the bottom of a layout. Use this method if no panels will be placed underneath your shelf.

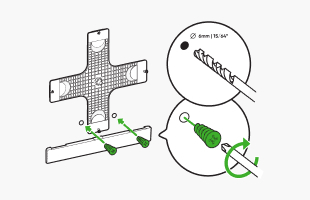

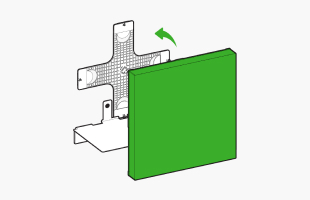

For shelf installations in between panels. Use this method if there will be panels installed above and below your shelf.

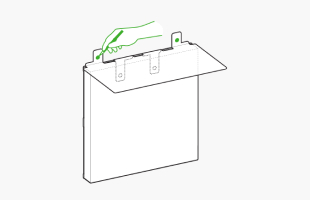

For shelf installations at the top of a layout. Use this method if no panels will be placed on top of your shelf.
