If you bought the Camera Only kit, proceed directly to Positioning the Nanoleaf 4D Camera. If not, follow the instructions below to first attach the Lightstrip.
Make sure the back of your TV or monitor screen is free of dust, moisture, and oil before attaching the lightstrip or corner brackets.
Use the provided tape and attach corner brackets onto the corners of the back of your screen, at least 2" away from the edge. These brackets make it easier for the Lightstrips to achieve a corner bend.
Peel the tape off the Lightstrip, and adhere it around the back of your TV, at least 2" away from the edge (bending around corner brackets, if used). Start with the end connected to the power cable on either side of the screen. Press firmly along the length of the strip to ensure a strong adhesion.
Connect the Lightstrip (USB-C) to the Controller.

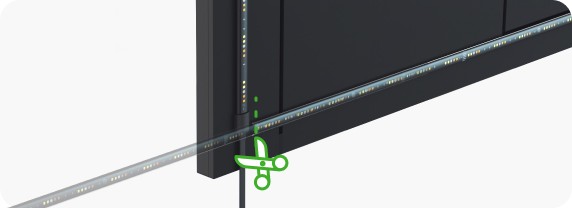

If you need to cut your Lightstrip to fit your screen, set it up first starting with the end connected to the power cable. Cut the remaining loose end carefully, avoiding any of the LED lights.
Once cut, the strip can not be connected back together, so ensure you’re set up properly before cutting.
Place the camera above the screen (top centre) using the included mount, or directly on a surface below your screen without the mount.
If placed below your TV or monitor, you can use the built-in stand to adjust the camera angle. You can also use the provided tape to secure your camera on the surface below your screen as movements to your camera may affect the screen mirroring experience.
Connect the camera (USB-A) into the Controller, and plug in to power. The LED lights on the Controller will blink when you plug to power.
